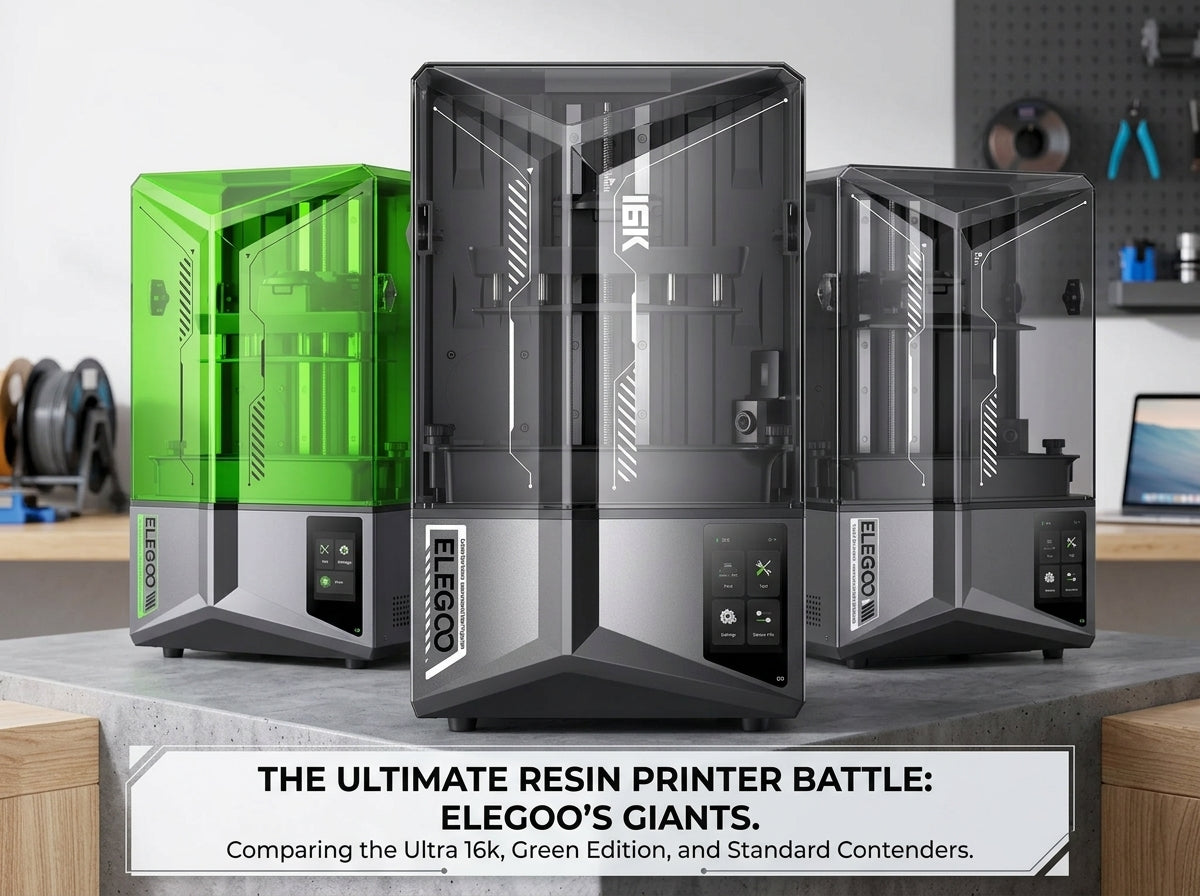

Elegoo Saturn 4 vs Saturn 4 Ultra vs Saturn 4 Ultra 16K: Complete Comparison Guide

What Are the Real Differences Between the 3 Elegoo Saturn 4 Models?

All three models share the same build volume (211.68 x 118.37 x 220 mm) but differ in screen resolution, mechanical system, and premium features. The base Saturn 4 has a 12K screen without tilt release, the Ultra adds tilt release while keeping 12K resolution, and the Ultra 16K upgrades to a true 16K screen with all the premium features.

The key is understanding what each step up actually gets you. The base Saturn 4 is a direct upgrade from the Saturn 3 Ultra — same 12K screen, but without the tilt release system that dramatically reduces peel forces. It's the most affordable option if you're coming from an older Saturn and don't mind the occasional peel failure on early layers.

The Saturn 4 Ultra introduces a mechanical tilt release system that slightly tilts the resin vat after each layer. This mechanism reduces suction forces by up to 35%, based on testing I've seen across specialized forums. The difference is significant: users report zero print failures throughout the entire lifespan of the FEP (60,000 releases according to Elegoo). It also adds resin heating to 30°C — essential if your workspace drops below 20°C in winter.

The Elegoo Saturn 4 Ultra 16K is the flagship model, featuring a 15120 x 6230 pixel display. XY resolution drops from 19 x 24 μm on the 12K models to just 14 x 19 μm. It also adds an AI camera for remote monitoring, full Wi-Fi connectivity, and a top print speed of 150 mm/h compared to 70 mm/h on the two smaller models.

What Screen Resolution Does Each Saturn 4 Have? (12K vs 12K vs 16K)

The base Saturn 4 and Saturn 4 Ultra both use 12K mono LCD screens with an XY resolution of 19 x 24 microns. The Saturn 4 Ultra 16K steps up to a true 16K panel at 15120 x 6230 pixels, achieving an XY resolution of 14 x 19 microns.

The practical difference between 12K and 16K depends heavily on what you're printing. For 28–32mm miniatures, you honestly won't notice the difference with the naked eye. Skin texture, armor details, and fine elements look equally sharp at both resolutions. Where 16K actually makes a difference is on larger models or when you need ultra-fine details like embossed text under 1mm tall.

One important detail: all three screens are mono LCDs with an estimated lifespan of 2,000 hours — roughly 6 to 8 months of heavy use before you start seeing degradation in exposure uniformity. Mono LCD technology is very mature at this point, and all three versions use similarly high-quality panels; the only real difference is pixel density.

For context, direct competition like the Phrozen Sonic Mega 8K S tops out at 8K resolution with 43-micron pixels. Even the base Saturn 4 at 19 x 24 μm delivers significantly more detail than most printers in the prosumer segment.

Which model has the best resin vat and heating system?

Only the Ultra and Ultra 16K models include active resin heating to 30°C. The base Saturn 4 has no heating system. All three share the same vat design with high-durability FEP rated for 60,000 release cycles.

Resin heating is one of those features you don't appreciate until you actually need it. Keeping resin at a steady 30°C lowers viscosity and dramatically improves flow—especially with high-viscosity Elegoo resins compatible with the Saturn 4 like castable or tough formulas. In my experience, the biggest difference shows up in rest times between layers: you can cut them by up to 30% without sacrificing adhesion.

The heating system also makes a real difference in cold environments. Users have reported successful prints in workshops at temperatures as low as 25–39°F (−3 to 4°C)—something that would be impossible without active heating. Cold resin simply doesn't flow properly, and you end up with incomplete layers or delamination.

As for the vat itself, all three models use the same improved design with taller walls to prevent spills and a quick-release system that makes swapping easy. The FEP comes pre-tensioned from the factory and, according to durability testing, can handle up to 60,000 peel cycles with ease—translating to months of use before you need to replace the film.

Which model has an AI camera and Wi-Fi connectivity?

Only the Saturn 4 Ultra 16K includes a built-in AI camera with automatic failure detection and full Wi-Fi connectivity. The base Saturn 4 and Ultra require a USB connection and have no remote monitoring options.

The AI camera on the Ultra 16K is far more than a gimmick. The system automatically detects common issues like print detachment from the build plate, low resin levels, or even foreign objects in the vat. When it spots a problem, it pauses the print and sends a notification to your phone through the Elegoo app.

Wi-Fi connectivity lets you send files directly from ChituBox or Lychee Slicer without touching a USB drive. You can also monitor print progress in real time, tweak parameters on the fly, and get notified the moment a print finishes. If you run a workshop with multiple machines—or if your printer lives in a separate room—this kind of remote control is a genuine day-to-day game changer.

The base model and Ultra rely entirely on USB file transfer. It's not a dealbreaker, but in 2024 it feels noticeably dated to be swapping USB drives when competitors offer full wireless connectivity at similar price points.

Which is faster: 70 mm/h vs 150 mm/h?

The Saturn 4 Ultra 16K reaches print speeds of up to 150 mm/h—more than twice the 70 mm/h of the base Saturn 4 and Ultra. In practice, this translates to 40–50% shorter print times on typical models.

Keep in mind that 150 mm/h is the peak speed under ideal conditions with optimized resins. In practice, with standard resins from our full resin catalog, you'll realistically print closer to 100–120 mm/h to maintain quality. Even so, the difference is significant: a miniature that takes 4 hours on the basic Saturn 4 can be completed in around 2.5 hours on the Ultra 16K.

The extra speed comes from a combination of factors: a more powerful Z-axis motor, an optimized lighting system, and above all an improved tilt release mechanism that allows more aggressive movements without compromising adhesion. The 70 mm/h of the standard and Ultra models isn't bad, but it feels slow once you've experienced the 16K's speed.

One important note on speed: not all resins handle high print speeds well. Standard 405nm resins require longer exposure times that limit effective speed. To truly take advantage of the 150 mm/h, you'll need fast-cure resins, which typically cost 20–30% more.

Is the Saturn 4 Ultra 16K worth the extra cost?

The Saturn 4 Ultra 16K is priced at €519 — nearly double the base Saturn 4. It's worth it if you need maximum resolution for jewelry or dental applications, high production speeds, or remote monitoring and connectivity features for professional use.

Let's look at the hard numbers. Stepping up from the base Saturn 4 to the Ultra adds tilt release and resin heating for around €100 more. It's an investment that pays off quickly if you print regularly: fewer failed prints, less wasted resin, and the ability to work in cold environments. The tilt release system alone justifies the price difference if you value your time.

The jump from the Ultra to the Ultra 16K costs another €150–200, gaining 16K resolution, double the print speed, an AI camera, and Wi-Fi. Here, the equation depends more on your specific use case. If you're printing tabletop gaming miniatures or general-purpose prototypes, you'll probably never notice the resolution difference. But if you work with jewelry, dental models, or any application where micron-level detail matters, the 16K delivers a visible improvement.

The 16K's added speed also changes the calculation for semi-professional use. If you charge per piece or work to tight deadlines, completing jobs in half the time has real economic value. The AI camera prevents wasted 8-hour print runs from undetected failures — another factor that adds up in production environments.

When do you NOT need the top-tier model?

You don't need the Ultra 16K if you're mainly printing 28–32mm miniatures, working on a tight budget, or your workspace stays consistently above 20°C. The base Saturn 4 is more than capable for hobbyists and occasional prototyping.

Let's be honest: most users won't come close to pushing the Ultra 16K to its limits. If your typical use case is Warhammer or D&D miniatures, the standard Saturn 4 with its 12K resolution already delivers more detail than the human eye can appreciate at tabletop distance. The difference between 19 and 14 microns is purely academic once you're painting over everything with a brush.

The standard Saturn 4 also makes sense if this is your first large-format resin printer. You're better off putting the price difference toward a quality wash and cure station like the Mercury Plus V3.0, proper ventilation with a Mars Mate, and a solid supply of resins with optimized print settings. A complete, well-equipped setup matters more than having the most powerful machine on the market.

Even for some professional applications, the Ultra (non-16K) can be the sweet spot. If you're printing functional prototypes where mechanical strength matters more than surface resolution, or if post-processing is your main bottleneck rather than print time, the 16K's 150 mm/h speed doesn't deliver enough added value to justify the price difference.

Full comparison chart: Saturn 4 vs Ultra vs Ultra 16K

Frequently asked questions about the Elegoo Saturn 4 lineup

Are resins compatible across all three models?

Yes, all three Saturn 4 models use the same 405nm UV curing system and are fully compatible with the same resins. The only difference lies in exposure times: the Ultra 16K's higher print speed may require minor parameter adjustments, but any resin that works on one model will work on the others.

Can I upgrade a standard Saturn 4 with Ultra features?

No — the differences are fundamental hardware. You cannot add tilt release, resin heating, or swap out the screen. If you need these features, you'll need to buy the corresponding model. Elegoo does not sell upgrade kits, and these systems are integrated into each model's base design.

What's the practical difference in LCD lifespan across all Saturn 4 models?

The 2,000-hour rating refers to active exposure time, not total uptime. With typical use — around 8 hours of printing per day — that works out to roughly 6–8 months. All three models use similarly rated mono LCD screens, so degradation rates will be comparable across the lineup. Replacement costs are also the same regardless of model (around €150–200).

Do these printers require special ventilation?

Yes, all Saturn 4 models need proper ventilation. The large build volume means more resin is exposed during printing, which increases fume output. An air purifier like the Mars Mate is highly recommended — especially if the printer is in a shared space. Ventilation requirements are the same across all three models.

Are they compatible with Elegoo's wash and cure ecosystem?

All three models work with the Mercury Plus V3.0, which handles build plates up to 10 inches. The maximum wash dimensions (230 x 135 x 260mm in basket mode) fully accommodate the entire build volume of any Saturn 4 variant. You won't need different equipment depending on which model you choose.

Is it worth waiting for a future Saturn 5?

Elegoo typically runs on an 18–24 month product cycle. The Saturn 4 launched in 2024, so a Saturn 5 is unlikely before late 2026 at the earliest. The current models already incorporate the most mature technologies in the segment — tilt release, heated build chamber, high resolution — so future improvements will most likely be incremental.

See you at the workbench 😎
